JPT Ratcheting Open-Barrel Wire Crimping Tool

A poorly crimped terminal can lead to overheating, signal loss, or complete electrical failure. This ratcheting wire crimper set removes inconsistency from the process by delivering controlled force, precise alignment, and repeatable results—making it a reliable choice for both professionals and advanced users.

Key Features

Ratcheting Crimping Mechanism

The built-in ratcheting system applies controlled and consistent pressure throughout the crimping cycle, ensuring the tool releases only after a full and proper crimp is achieved.

Open-Barrel B-Crimp Terminal

The JPT wire climping specifically designed for non-insulated open-barrel terminals, the tool forms an accurate B-crimp that securely wraps the conductor strands while supporting the insulation.

Adjustable Crimp Pressure

An integrated pressure adjustment mechanism allows fine tuning of crimp force to match different wire gauges and terminal thicknesses.

Machined Hardened Steel Dies

The crimping dies are machined from hardened steel to maintain accurate jaw alignment and consistent terminal shaping.

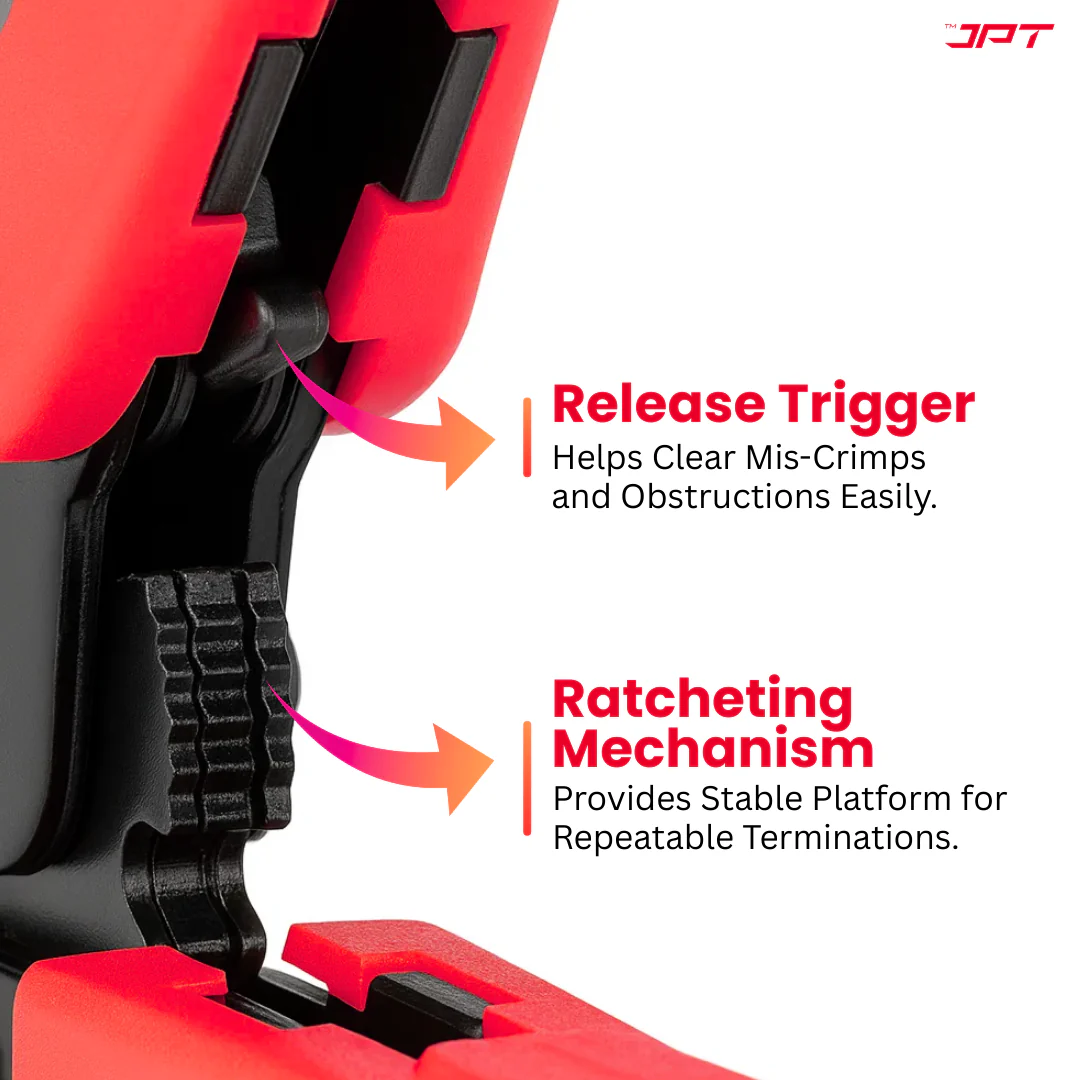

Quick-Release Safety Trigger

A built-in quick-release trigger allows immediate opening of the jaws if a terminal is mispositioned or an adjustment is needed mid-cycle.

Controllable Crimping

This wire climping feature with an adjustable crimping force mechanism, that allows precise control over crimping strength by adjusting the crimping height to suit different wire sizes and terminal thicknesses.

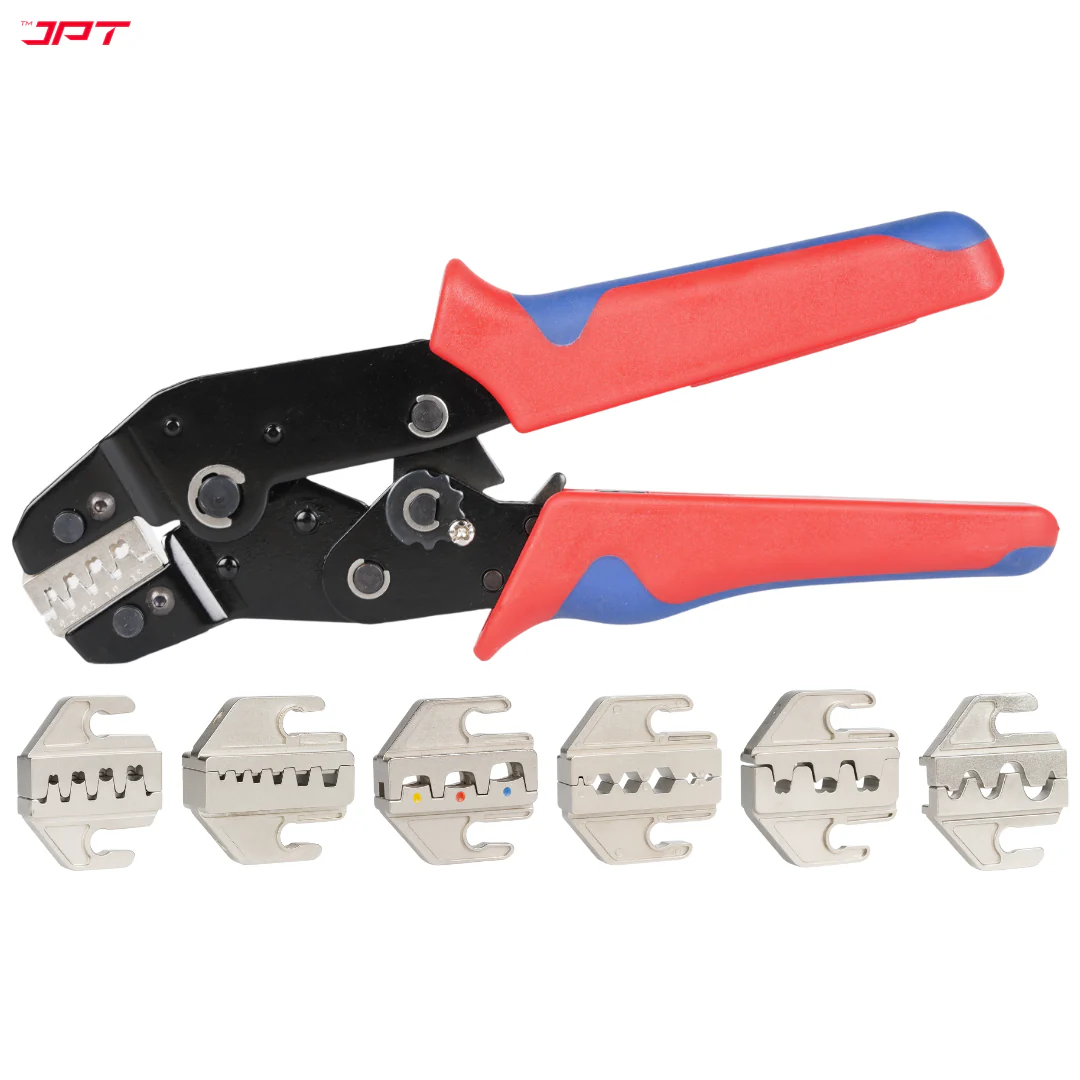

Dies kit Details

Die Code	Wire Size (mm²)	Wire Size (AWG)
58B	0.25 – 1.5 mm²	AWG 26 – 16
2546B	2.5 – 6.0 mm²	AWG 14 – 10
06WF	0.25 – 6.0 mm²	AWG 24 – 10
–6	0.5 – 6.0 mm²	AWG 20 – 10
03H	0.4 – 1.28 mm²	Micro terminal range
02C	0.25 – 2.5 mm²	AWG 26 – 14

Pliers

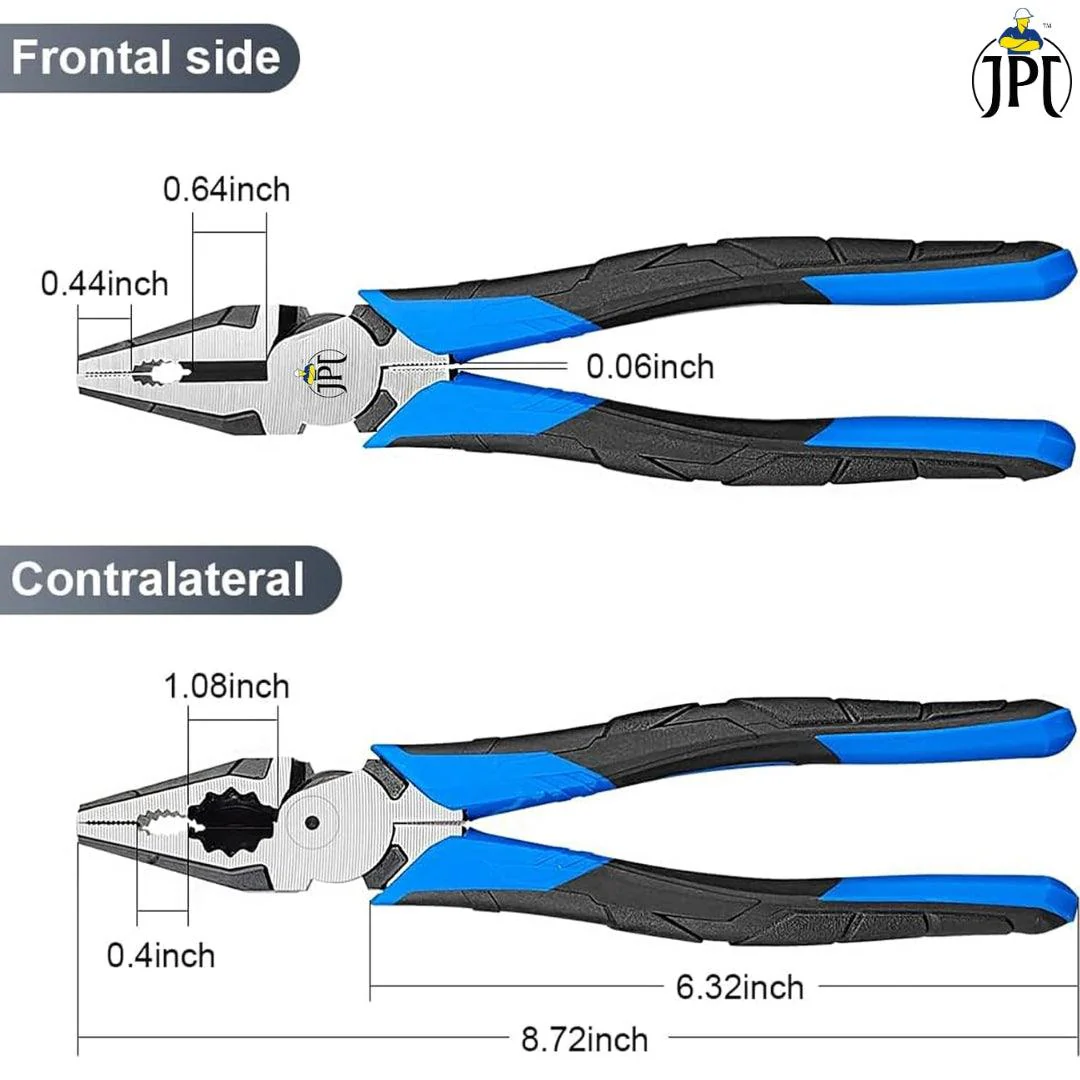

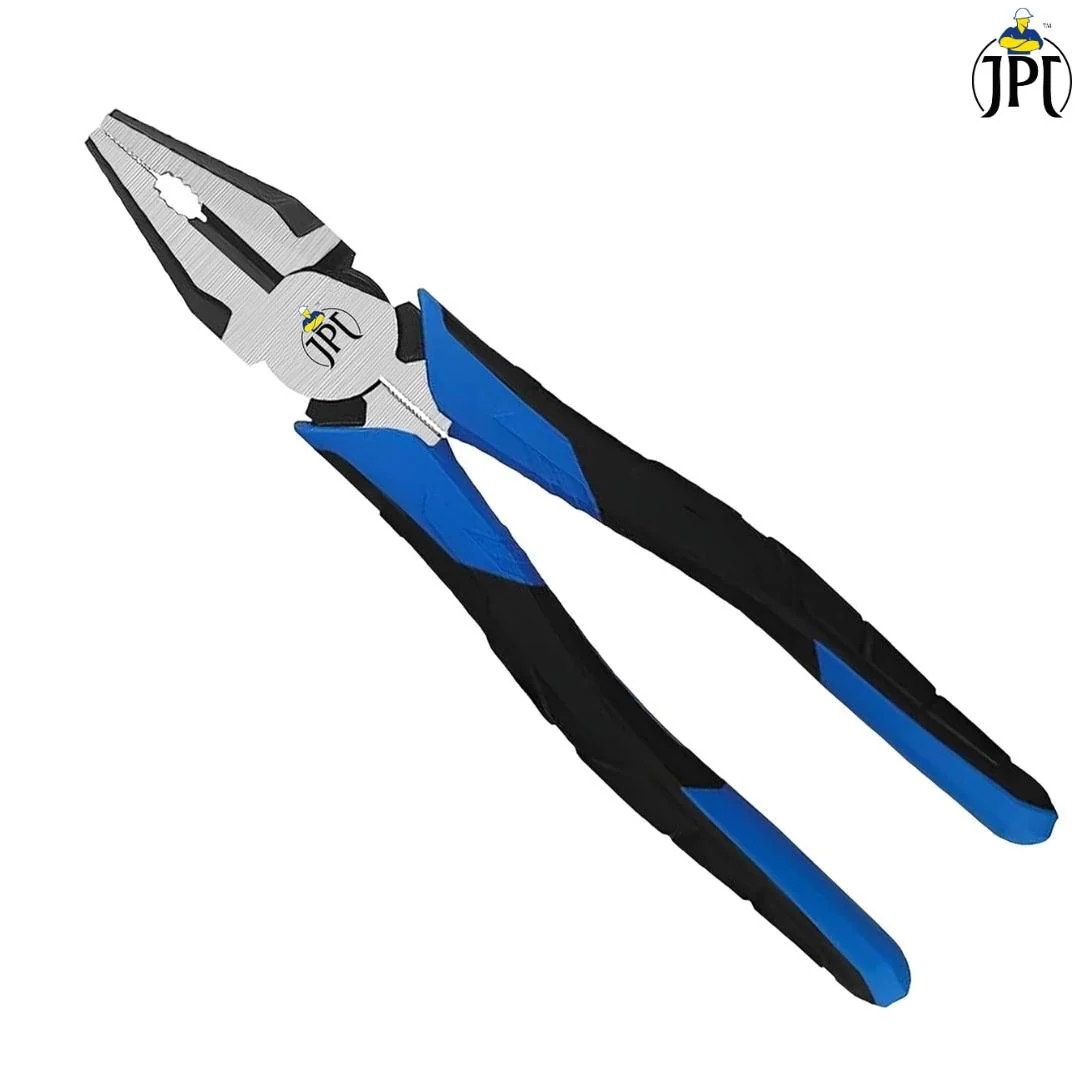

JPT 8-Inch Heavy Duty High-Leverage Cutting Plier for Twisting, Clamping Screws, and Cutting Soft Metals like Copper and Aluminum

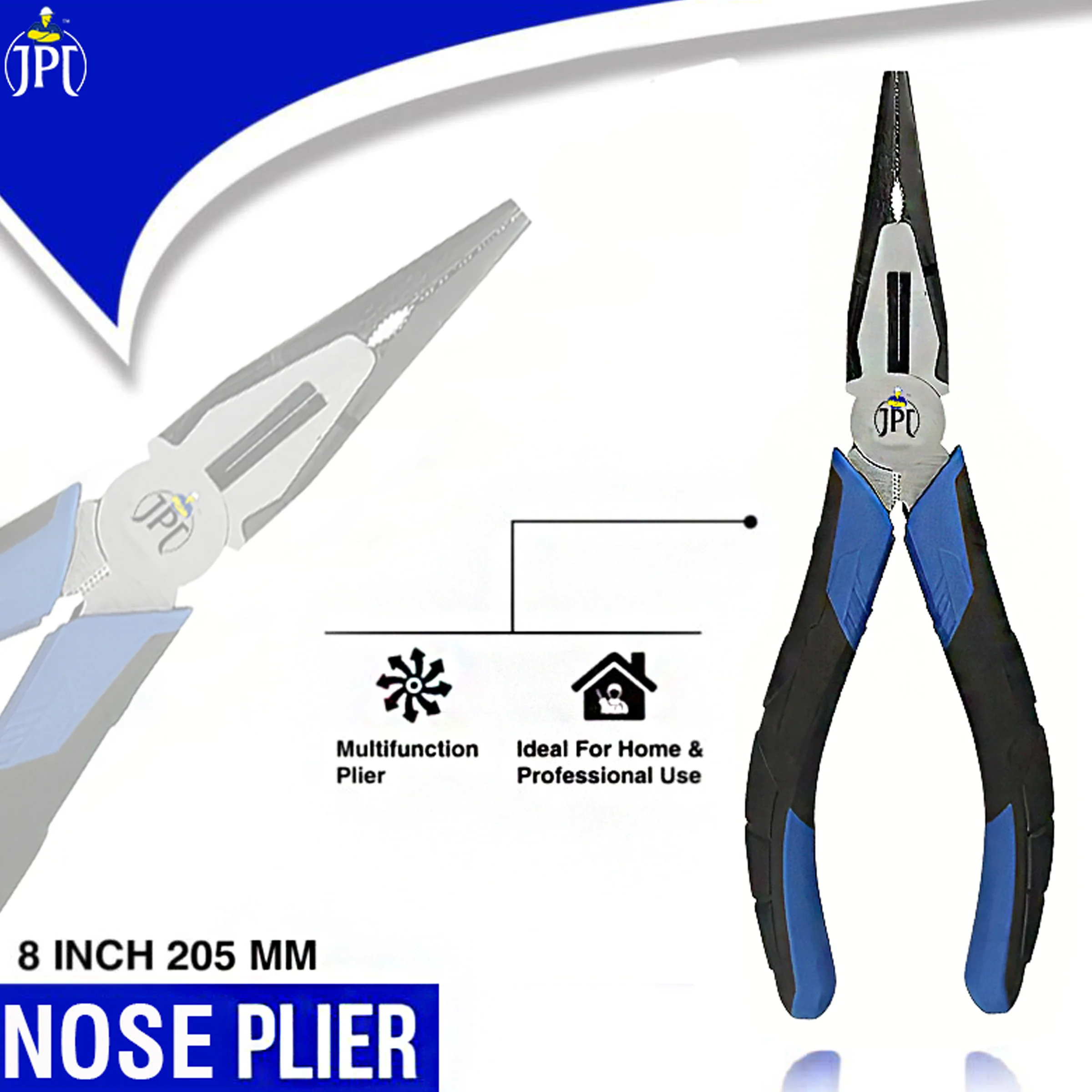

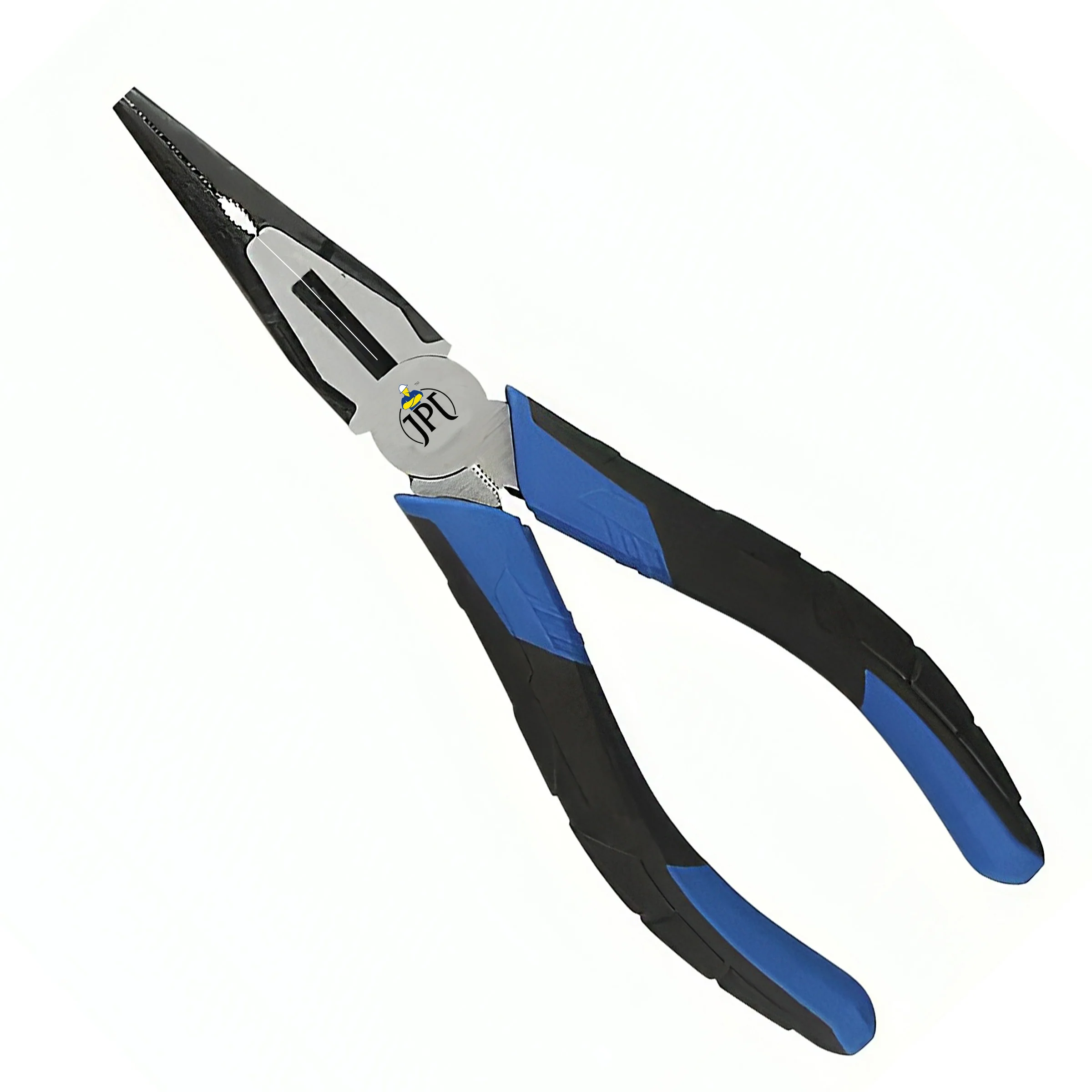

JPT 8-Inch Long Heavy Duty Nose Plier With Hard Carbon Steel Jaws And Comfort Grip Handles | Long Nose Cutting Pliers for AC Wiring, Cutting, And Gripping
